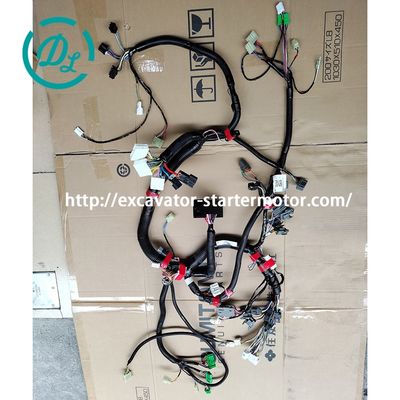

Sumitomo KHR19473 Wiring Harness for SH225X-3B Excavator 24V
  • name
  • name
  • name
  • name
  • name

Sumitomo KHR19473 Wiring Harness for SH225X-3B Excavator 24V

MOQ: 2pc
Price: Negotiable
Standard Packaging: Each product has a packaging
Delivery Period: 3 - 10 days
Payment Method: T/T,L/C,D/A,Western Union,MoneyGram
Supply Capacity: 1000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
DL
Model Number
KHR19473 KHR19473-01
OEM:
KHR19473 KHR19473-01
Feature:
Wiring Harness
VDC:
24V
Brand:
Sumitomo
WarranWarrantyty:
3 Months
Quality:
Original
Weight:
8kg
Engine Model:
SH225X-3B
Highlight:

Excavator Spare Parts Wiring Harness

,

SH225X-3B Wiring Harness

,

KHR19473-01 Wiring Harness

Product Description
Wiring Harness KHR19473 KHR19473-01 Excavator Spare Parts SH225X-3B
Product Attributes
Attribute Value
OEM KHR19473 KHR19473-01
Feature Wiring Harness
VDC 24V
Brand Sumitomo
Warranty 3 Months
Quality Original
Weight 8kg
Engine Model SH225X-3B
Product Specification
Product name Wiring Harness
P/N KHR19473 KHR19473-01
MOQ 1 PCS
Condition New original/ New generic/ Refurbished
Warranty 6 months
Delivery time 3-10 days after payment
Packing Inner with plastic bag, outer with carton
Payment T/T, Western Union, PayPal
Compatible Part Numbers
P/N P/N
8971493340 8971363430
8973032250 8980787921
5094000530 8971493930
5090002360 8943964390
9920614280 9058206300
0287510400 1090200070
1141491701 1090201010
1090201130 9923614450
0281612200 0281912250
0281912300 0287612400
0280810700 0286908200
Manual Starters Overview

Manual starters are devices operated manually, designed for simple operation without requiring expert intervention. These starters feature a button or rotary knob that enables users to turn connected equipment on or off through mechanical linkages that open or close contacts.

Important Safety Note:

Manual starters do not break control circuits during power loss, meaning motors could restart automatically when power is restored. This may present safety considerations in certain applications.

Key Advantages of Manual Starters
  • Safe and economical operation
  • Compact size suitable for diverse applications
  • Overload protection for motor safety
  • Available with various enclosure options
  • Low initial cost
Starter Motor Operation

When the engine is activated (via stop/start button or traditional key), an electrical signal is sent to the starter solenoid. This component transfers charge from the vehicle's battery to the starter motor, activating it along with the starter drive (Bendix gear system). The mechanism engages the flywheel, cranking the engine to initiate combustion in petrol and diesel vehicles.

Once the engine is running, the starter motor disengages from the flywheel as the engine no longer requires the electrical spark for operation.

Product Images
Sumitomo KHR19473 Wiring Harness for SH225X-3B Excavator 24V 0 Sumitomo KHR19473 Wiring Harness for SH225X-3B Excavator 24V 1 Sumitomo KHR19473 Wiring Harness for SH225X-3B Excavator 24V 2 Sumitomo KHR19473 Wiring Harness for SH225X-3B Excavator 24V 3 Sumitomo KHR19473 Wiring Harness for SH225X-3B Excavator 24V 4 Sumitomo KHR19473 Wiring Harness for SH225X-3B Excavator 24V 5 Sumitomo KHR19473 Wiring Harness for SH225X-3B Excavator 24V 6 Sumitomo KHR19473 Wiring Harness for SH225X-3B Excavator 24V 7 Sumitomo KHR19473 Wiring Harness for SH225X-3B Excavator 24V 8
